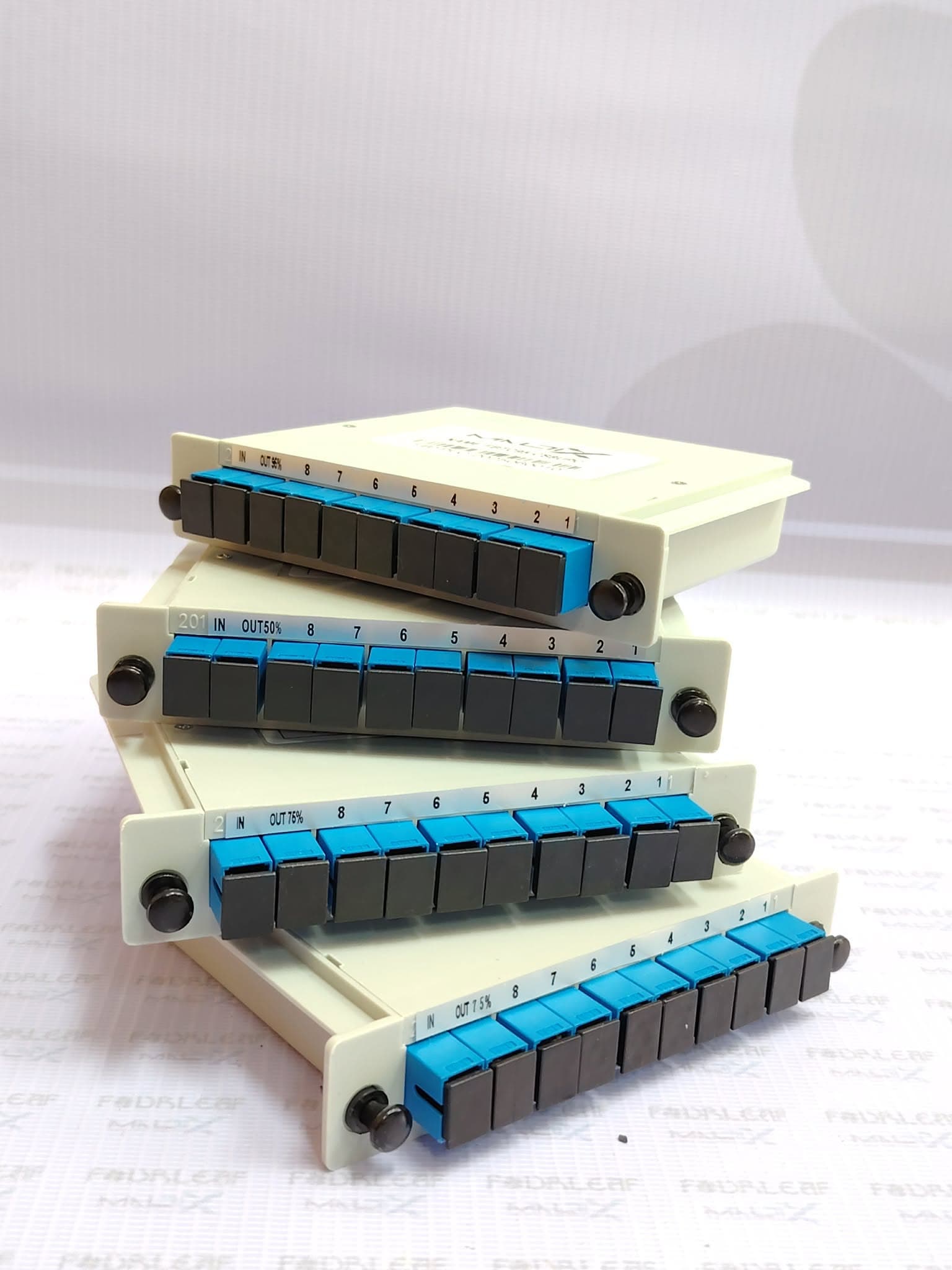

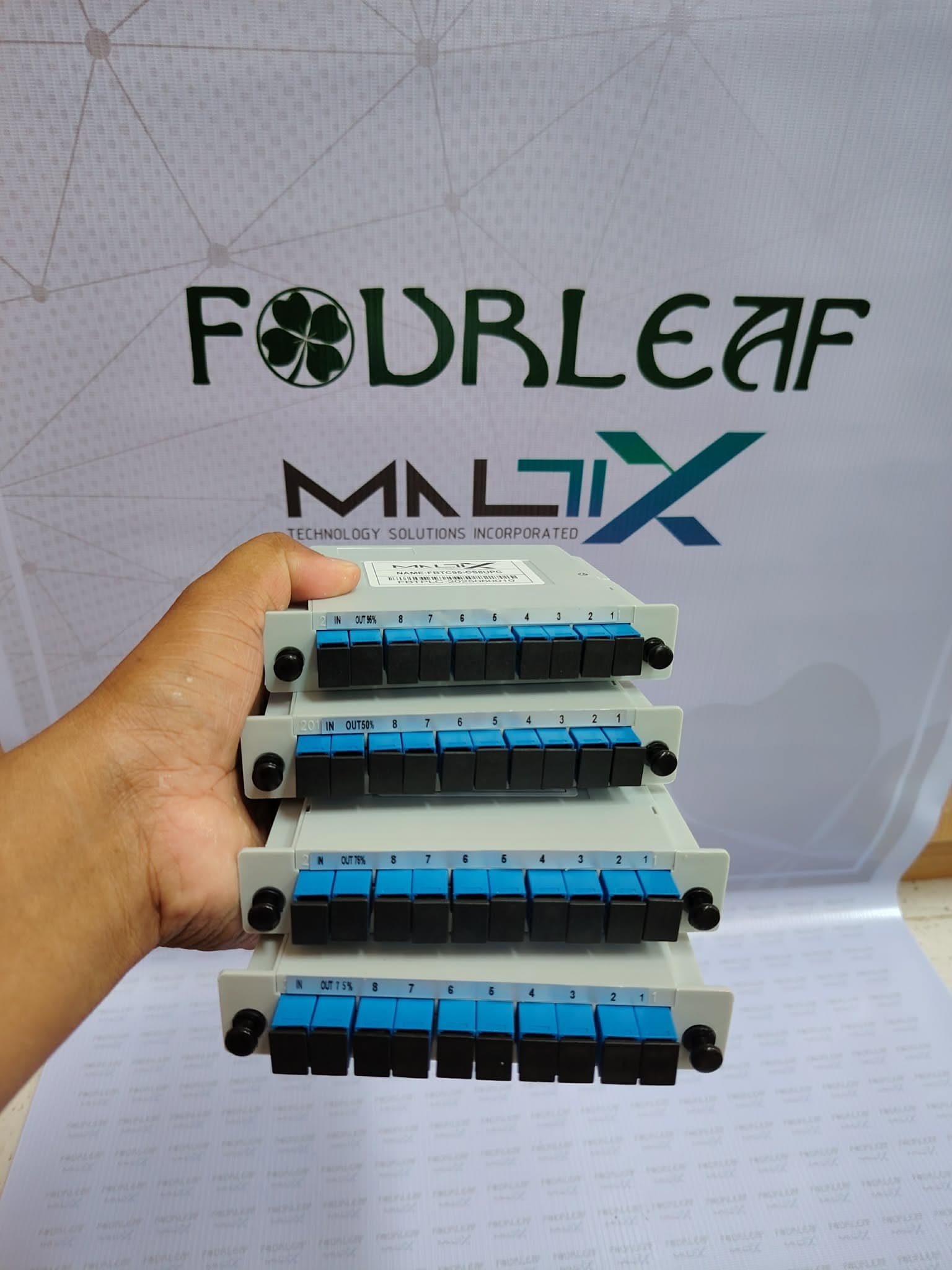

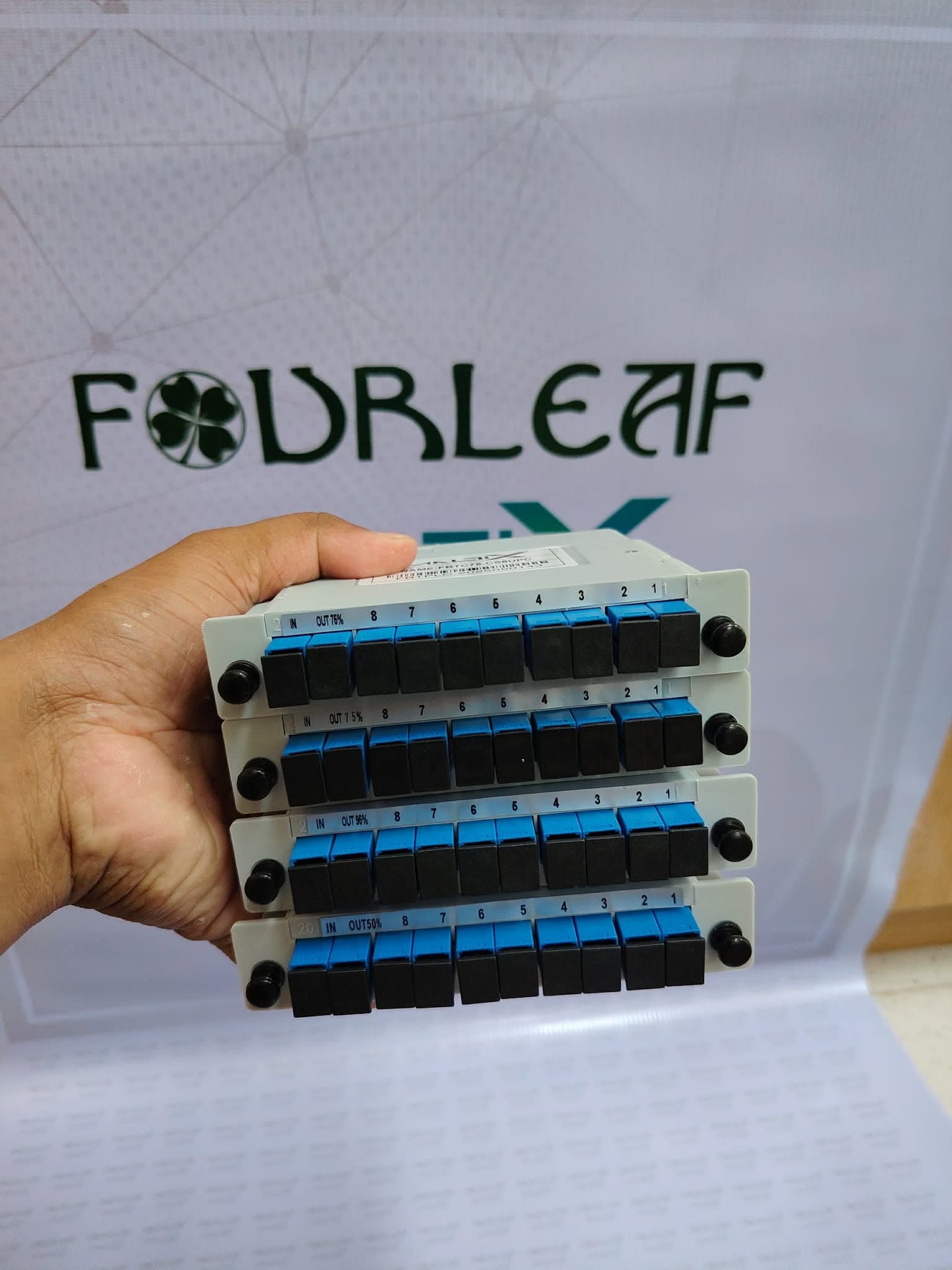

FBTC50-CS8UPC
Combined FBT tap + 1x8 (8-port) splitter in one cassette: a 50/50 FBT tap feeding a 1x8 cassette splitter with bare (no-pigtail) drops (UPC). Taps 50% off a feeder, splits 8 ways, passes 50% downstream.
See pricing for FBTC50-CS8UPC
Drop your email to unlock indicative ₱ pricing — and we'll follow up with a quote tailored to your project. No spam.
Overview
An integrated distribution module in one cassette: a 50/50 FBT tap coupler is fusion-spliced to the input of a 1x8 PLC splitter with bare (no-pigtail) drops. The tap has an input pigtail (from the feeder) and an output pigtail (pass-through to the next tap); at the tap point 50% of the light is branched off and split into 8 drops while 50% continues down the mainline - the building block for cascaded PON distribution. Connectors UPC (blue).
Dimensions
- Weight
- —
- Dimensions (L × W × H)
- —
- Packaging
- —
- Carton qty
- —
- Carton weight
- —
- Carton dimensions
- —
