FBTC65-CSP16UPC
Combined FBT tap + 1x16 (16-port) splitter in one cassette: a 65/35 FBT tap feeding a 1x16 cassette splitter with connectorized pigtail drops (UPC). Taps 35% off a feeder, splits 16 ways, passes 65% downstream.
See pricing for FBTC65-CSP16UPC
Drop your email to unlock indicative ₱ pricing — and we'll follow up with a quote tailored to your project. No spam.
Overview

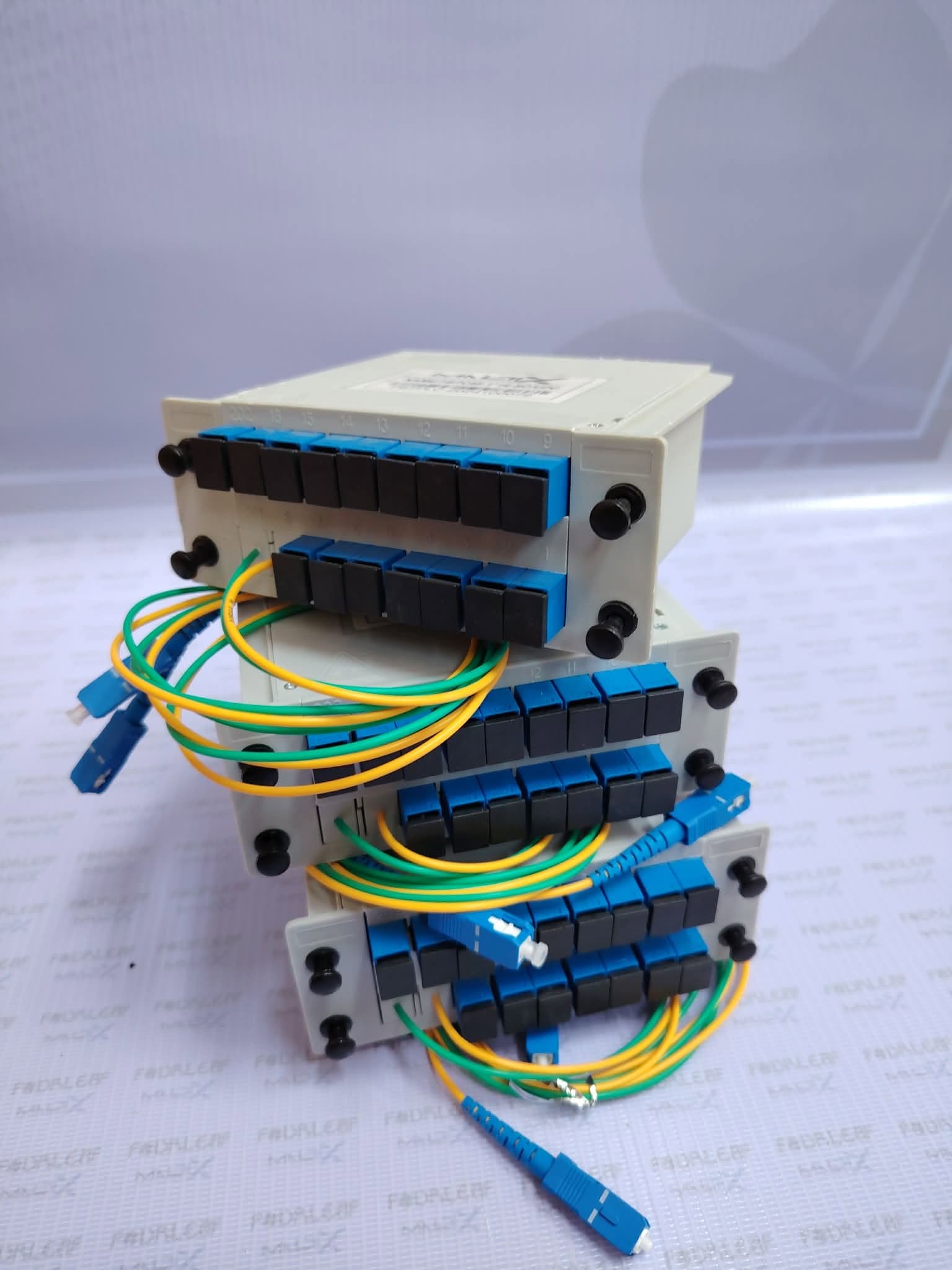

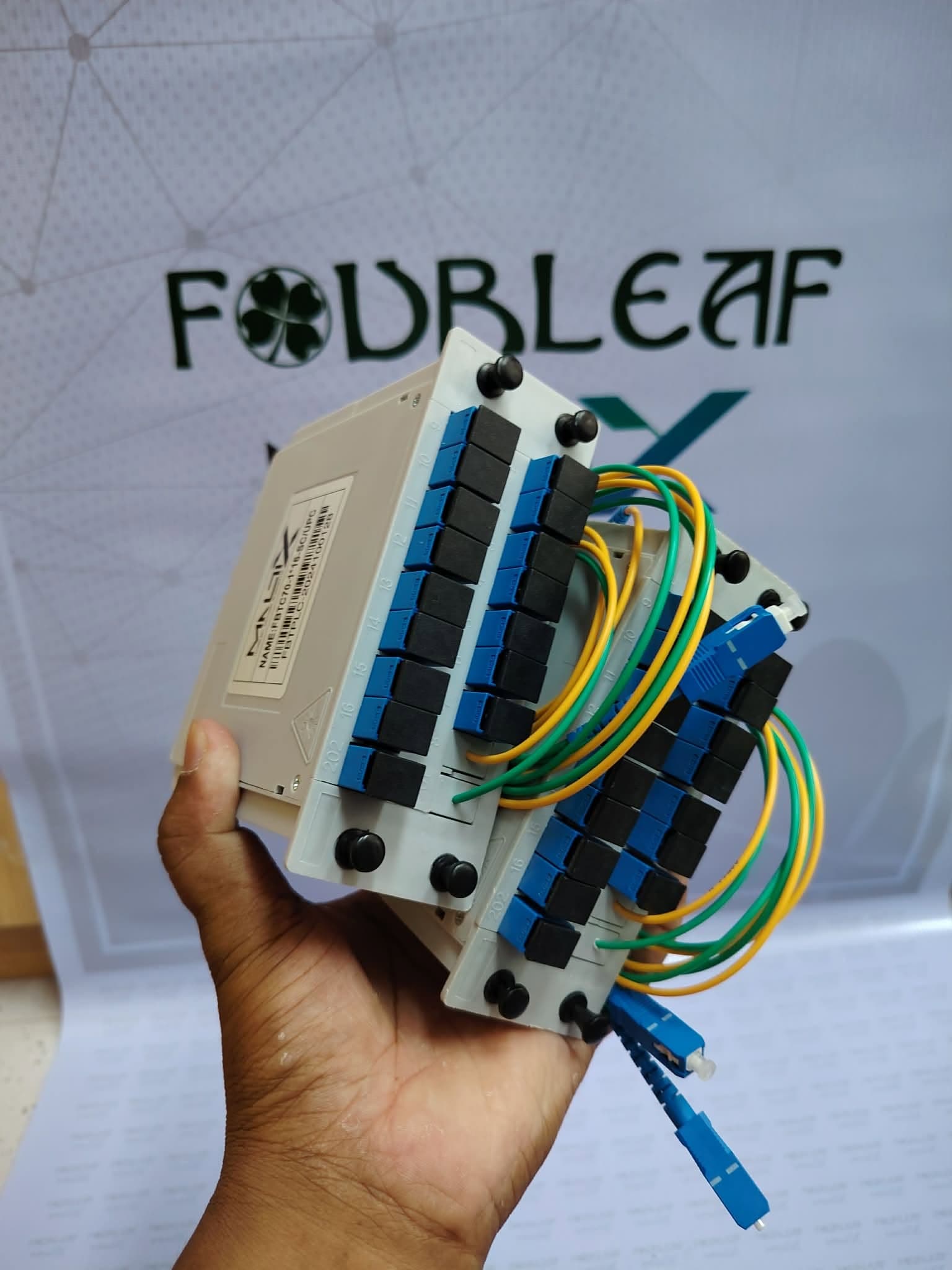

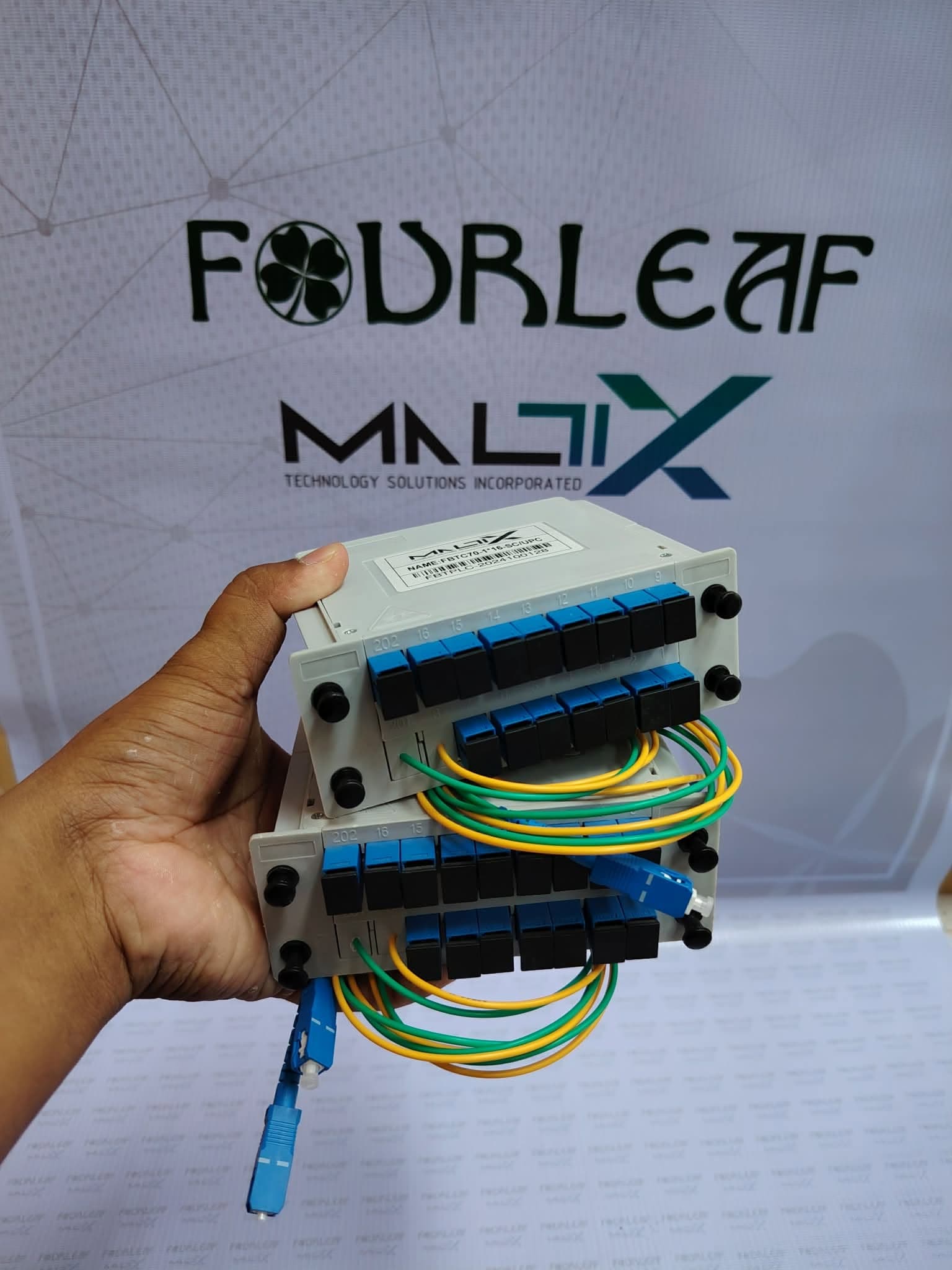

An integrated distribution module in one cassette: a 65/35 FBT tap coupler is fusion-spliced to the input of a 1x16 PLC splitter with connectorized pigtail drops. The tap has an input pigtail (from the feeder) and an output pigtail (pass-through to the next tap); at the tap point 35% of the light is branched off and split into 16 drops while 65% continues down the mainline - the building block for cascaded PON distribution. Connectors UPC (blue).
Dimensions
- Weight
- —
- Dimensions (L × W × H)
- —
- Packaging
- —
- Carton qty
- —
- Carton weight
- —
- Carton dimensions
- —
