FBTC80-CSP8APC
Combined FBT tap + 1x8 (8-port) splitter in one cassette: a 80/20 FBT tap feeding a 1x8 cassette splitter with connectorized pigtail drops (APC). Taps 20% off a feeder, splits 8 ways, passes 80% downstream.
See pricing for FBTC80-CSP8APC
Drop your email to unlock indicative ₱ pricing — and we'll follow up with a quote tailored to your project. No spam.
Overview

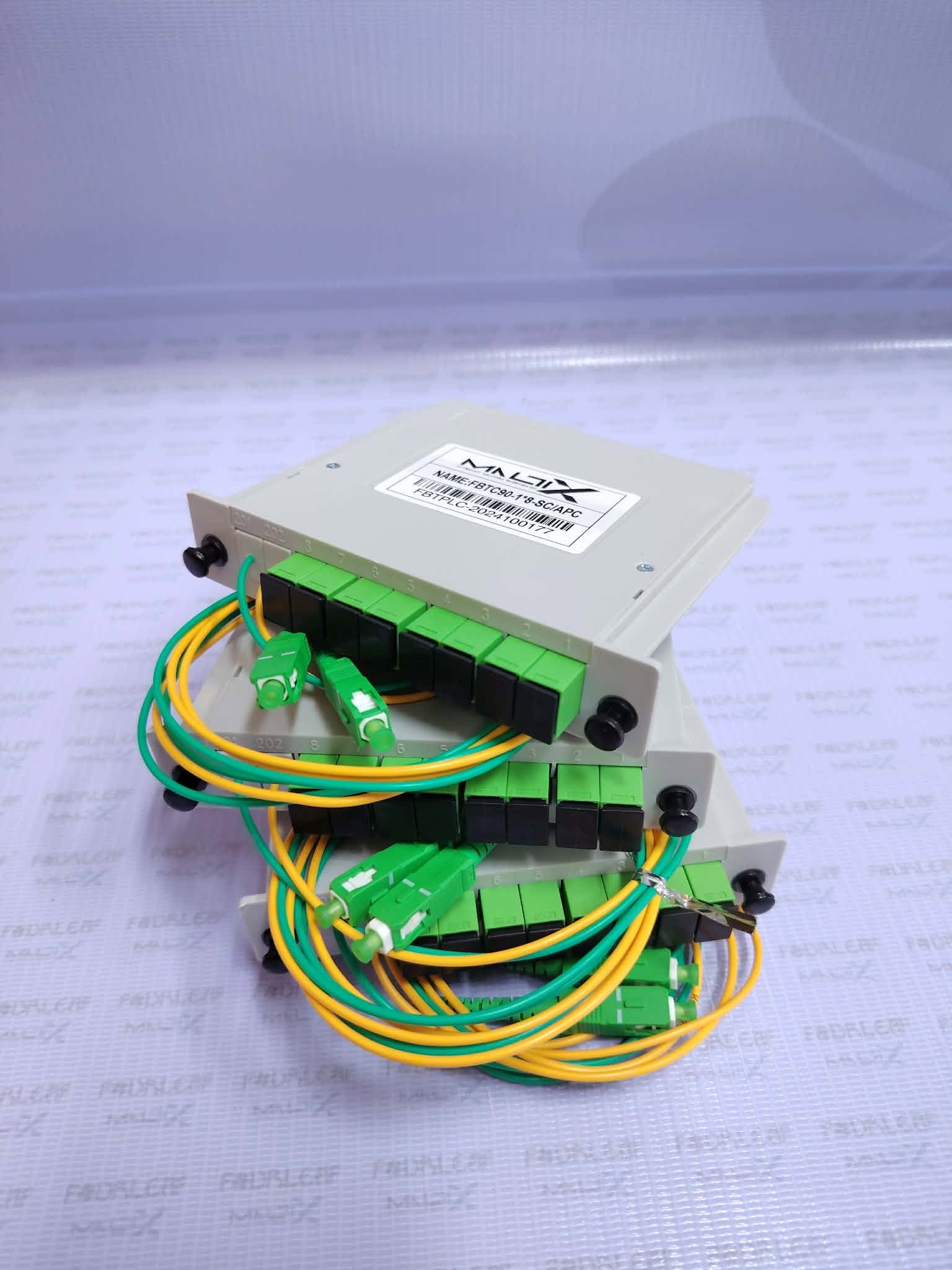

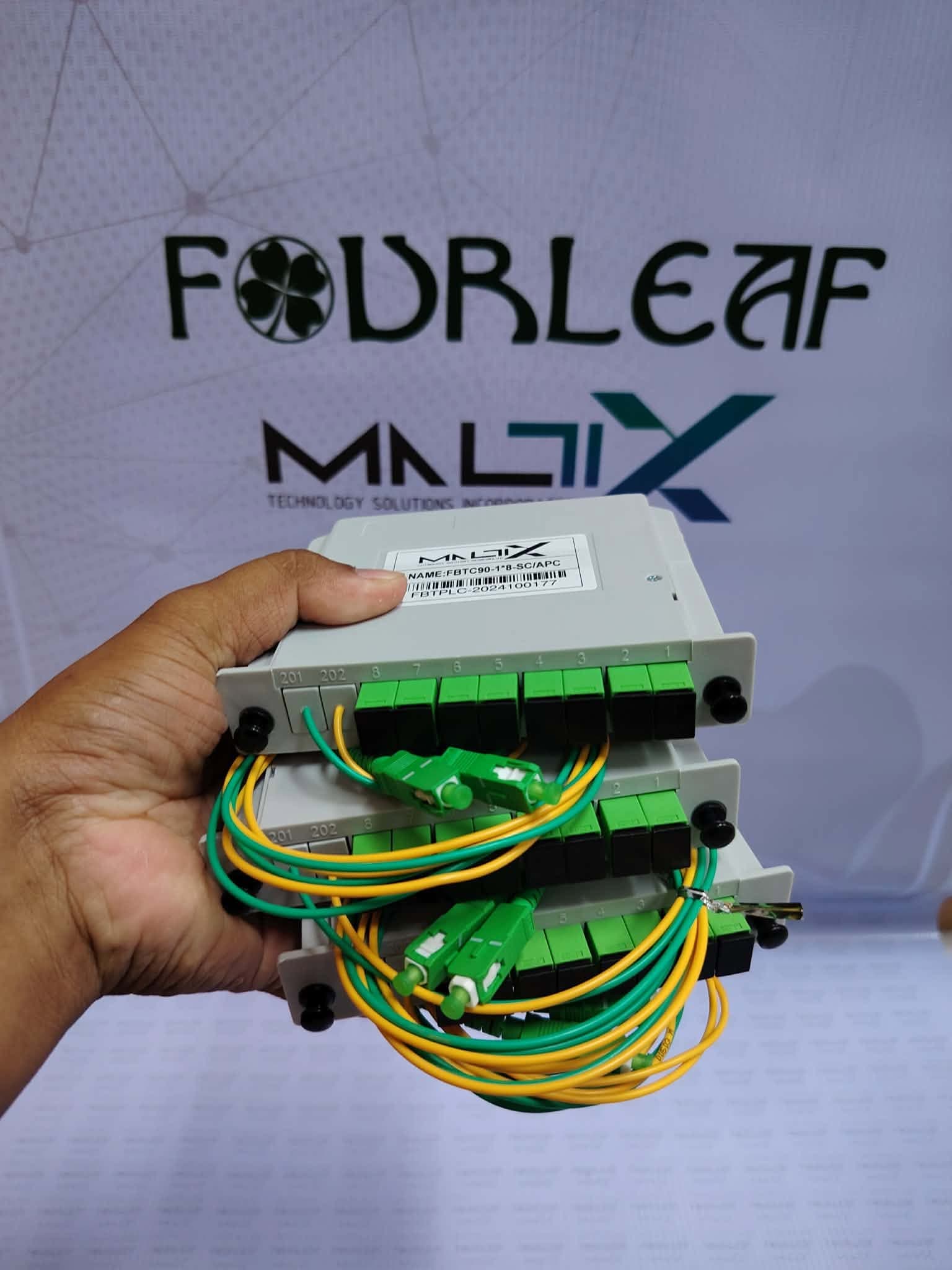

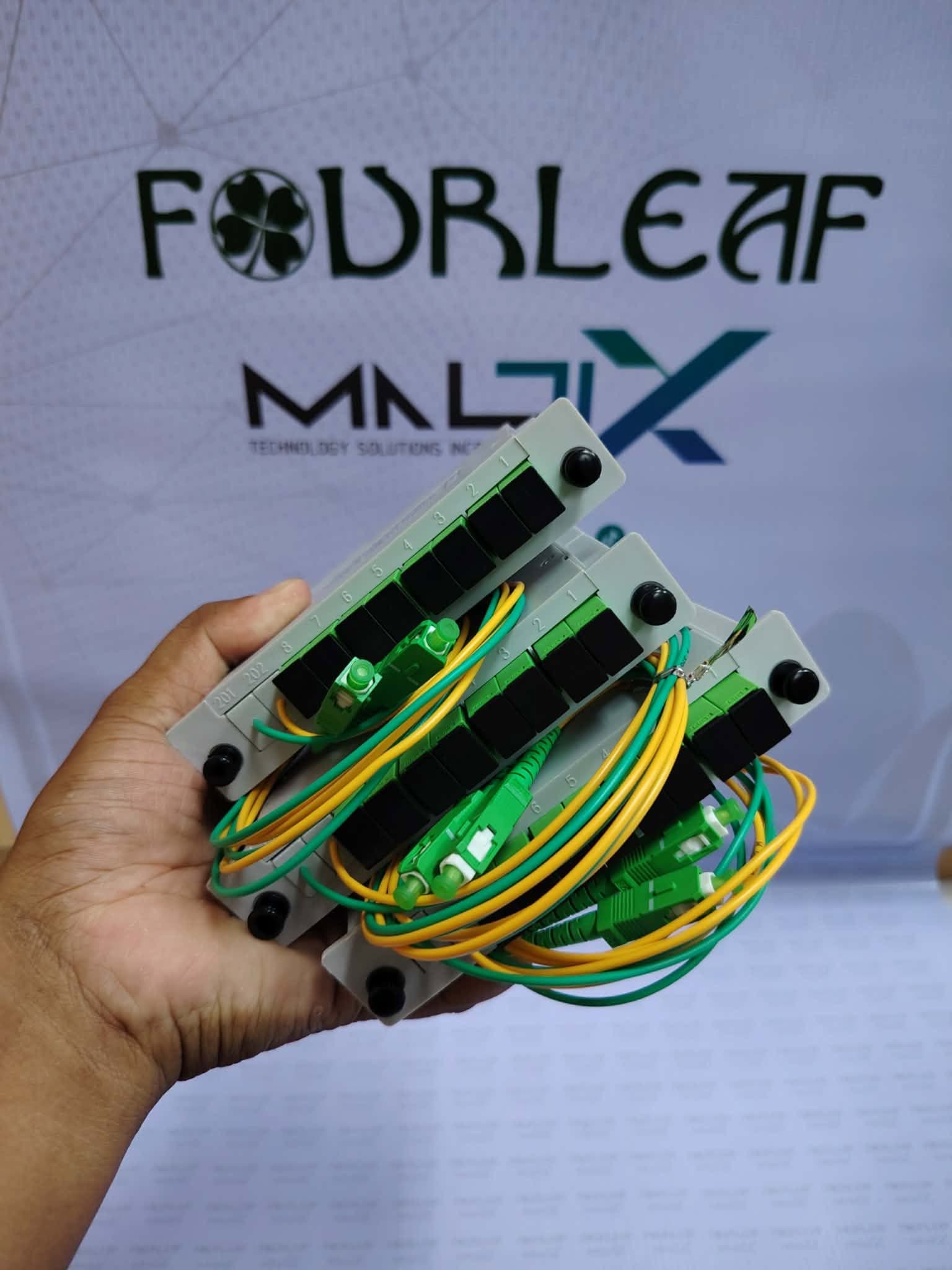

An integrated distribution module in one cassette: a 80/20 FBT tap coupler is fusion-spliced to the input of a 1x8 PLC splitter with connectorized pigtail drops. The tap has an input pigtail (from the feeder) and an output pigtail (pass-through to the next tap); at the tap point 20% of the light is branched off and split into 8 drops while 80% continues down the mainline - the building block for cascaded PON distribution. Connectors APC (green).
Dimensions
- Weight
- —
- Dimensions (L × W × H)
- —
- Packaging
- —
- Carton qty
- —
- Carton weight
- —
- Carton dimensions
- —
