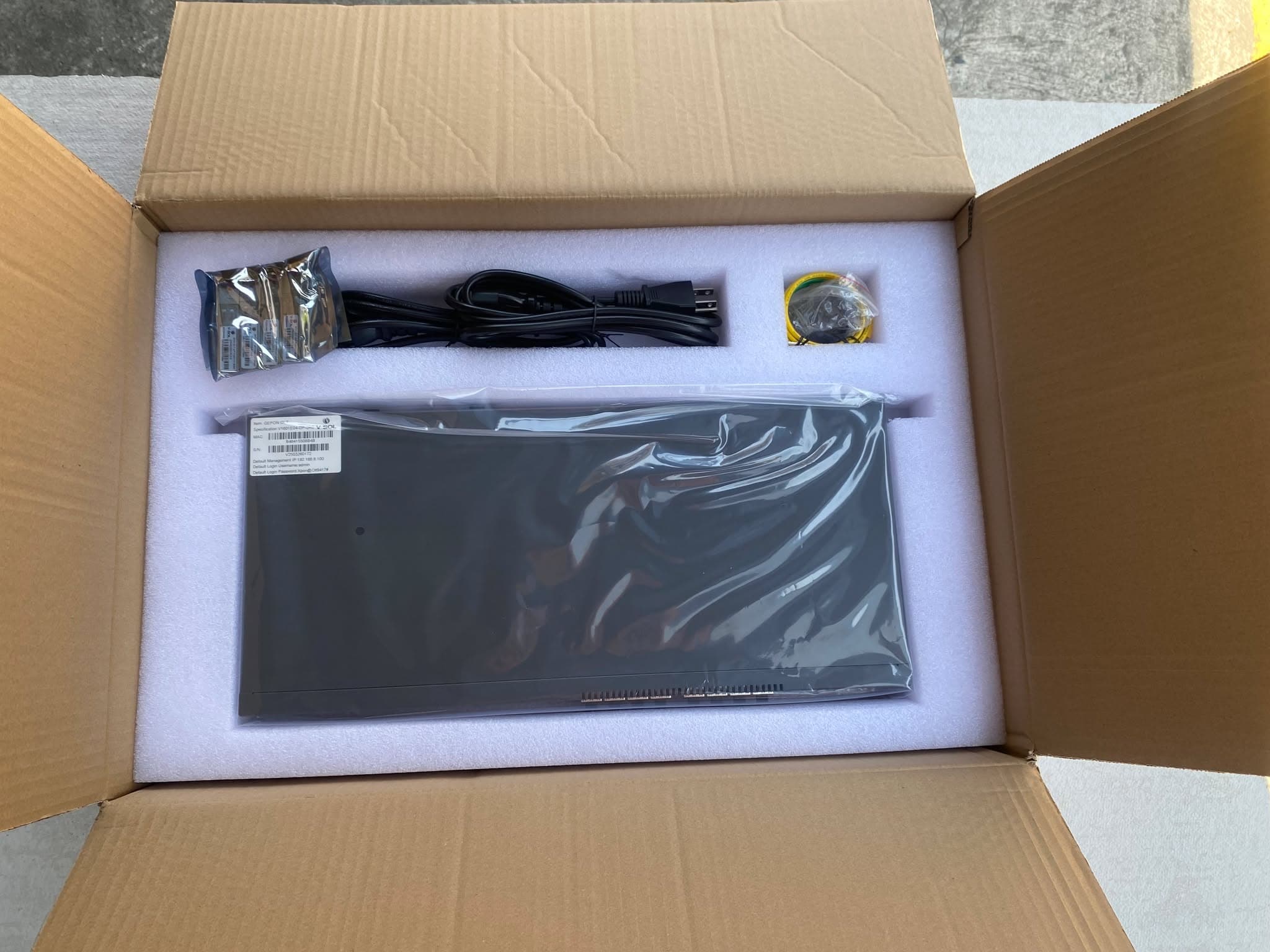

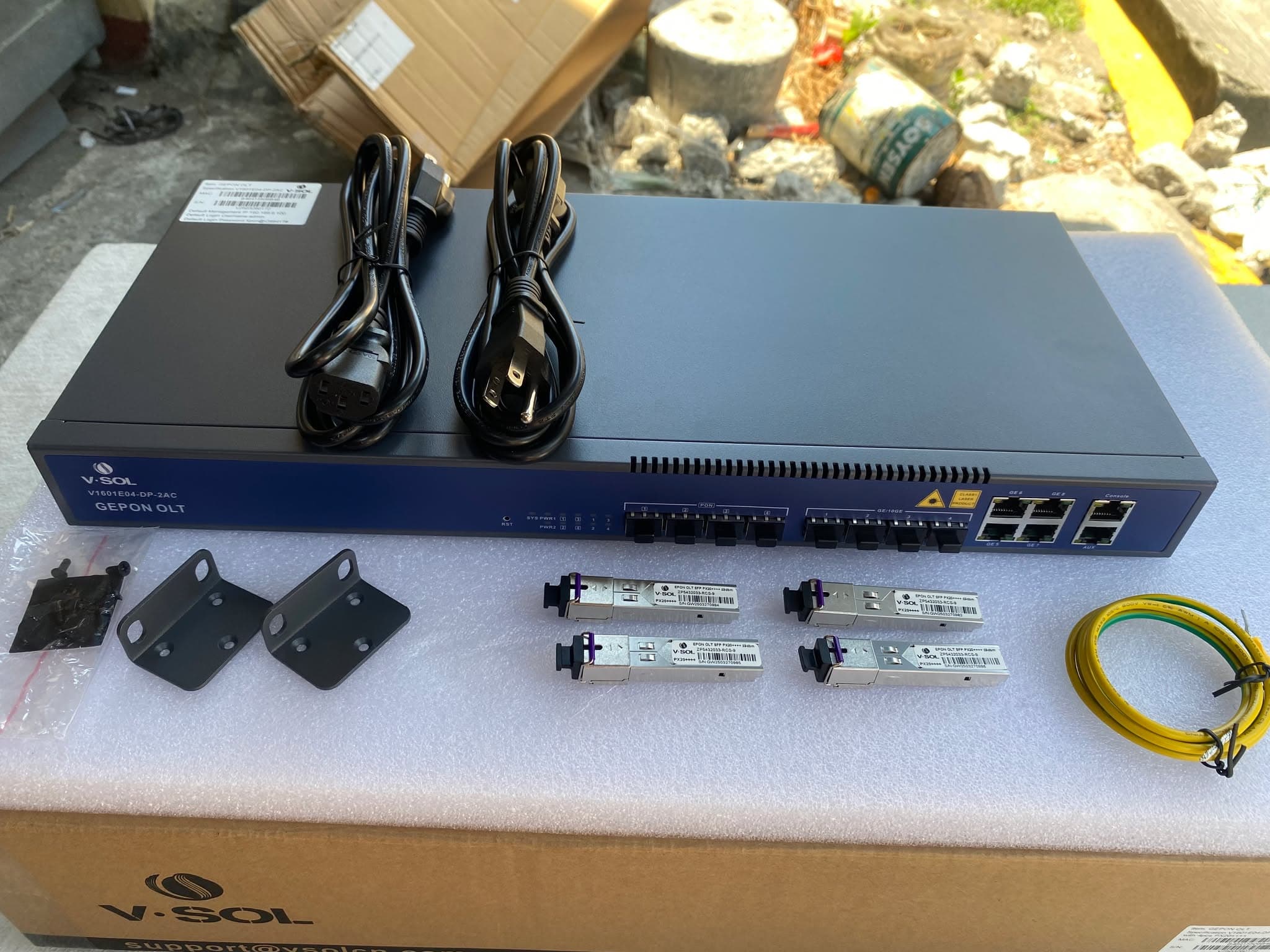

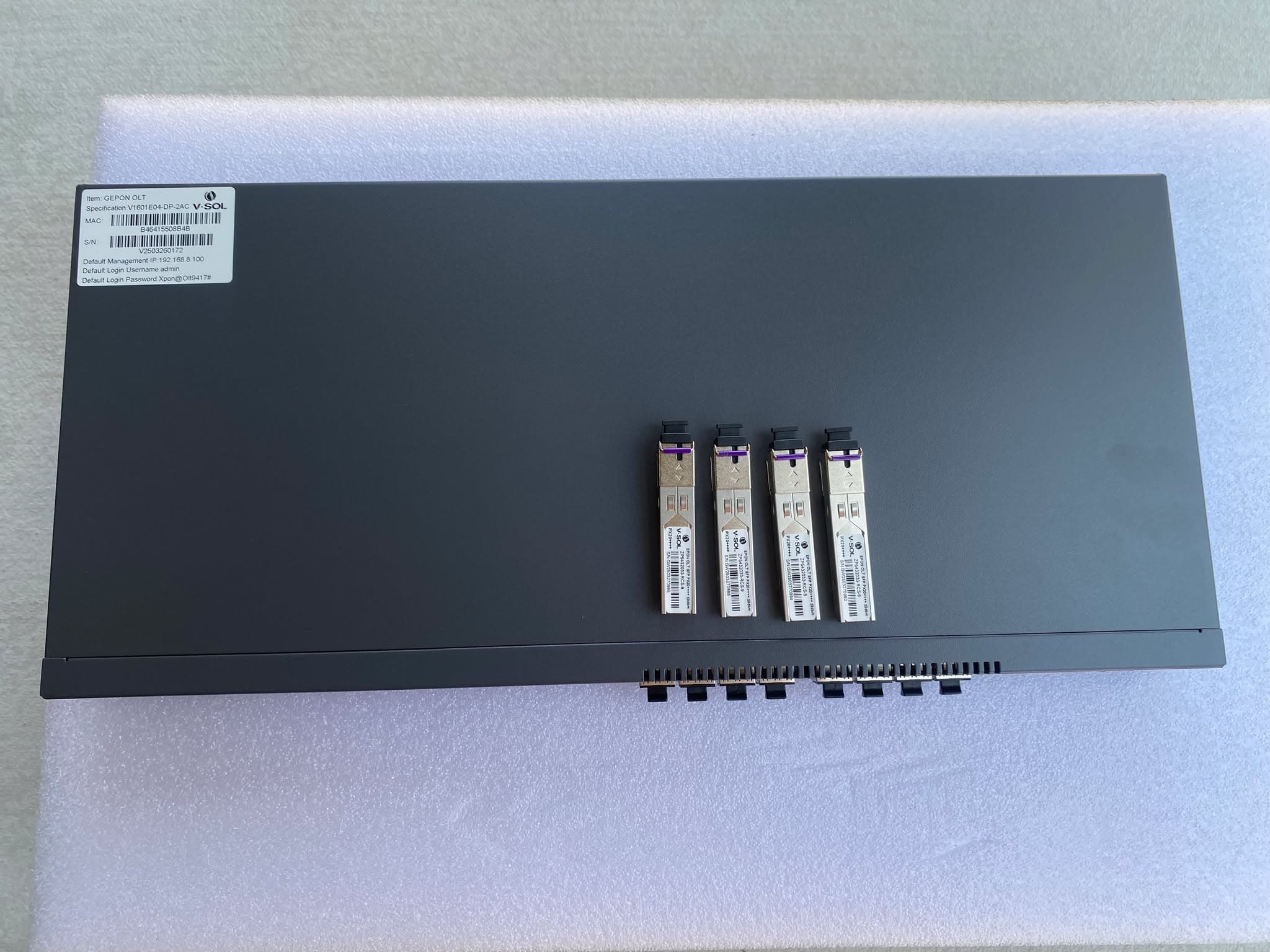

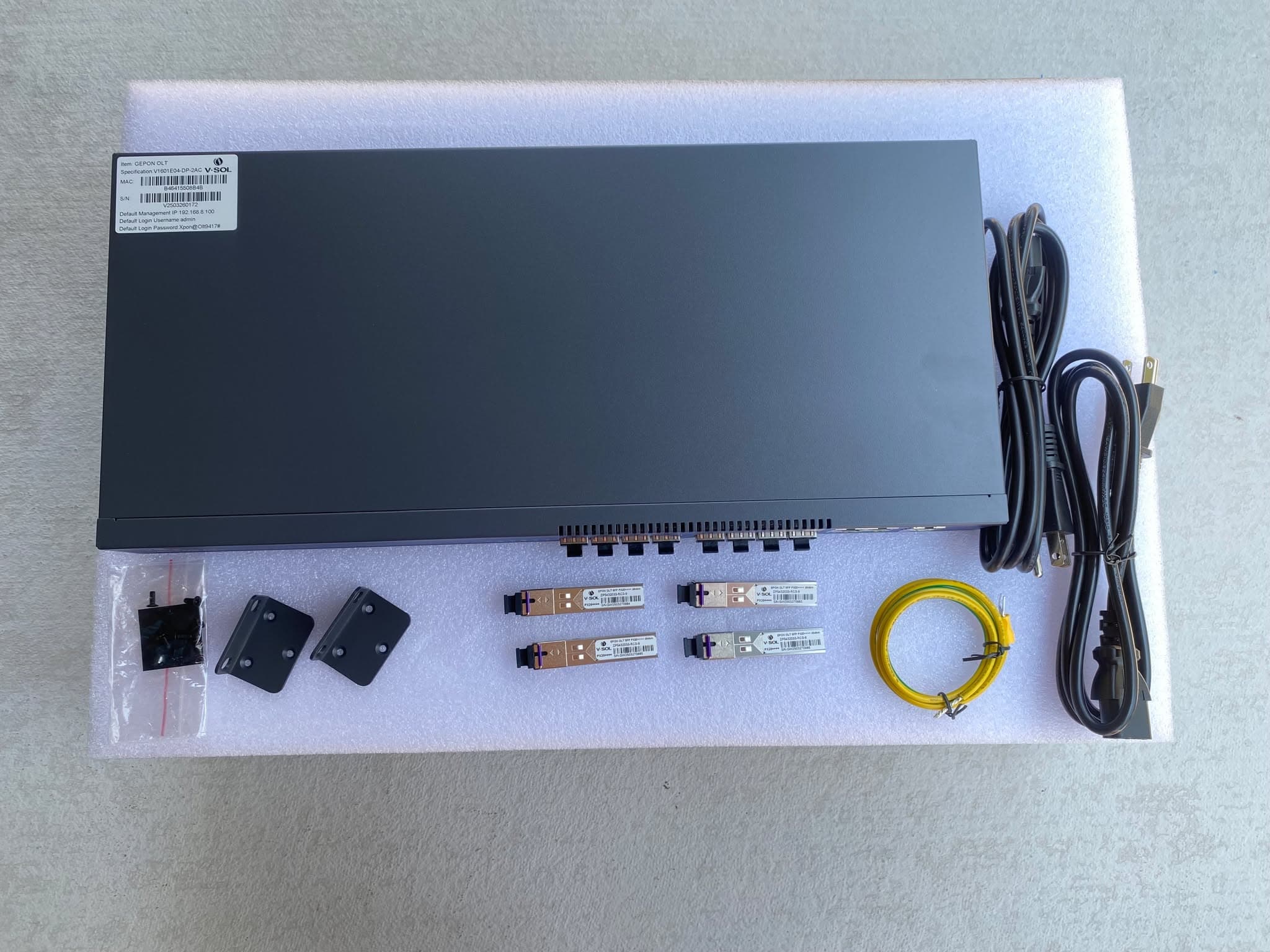

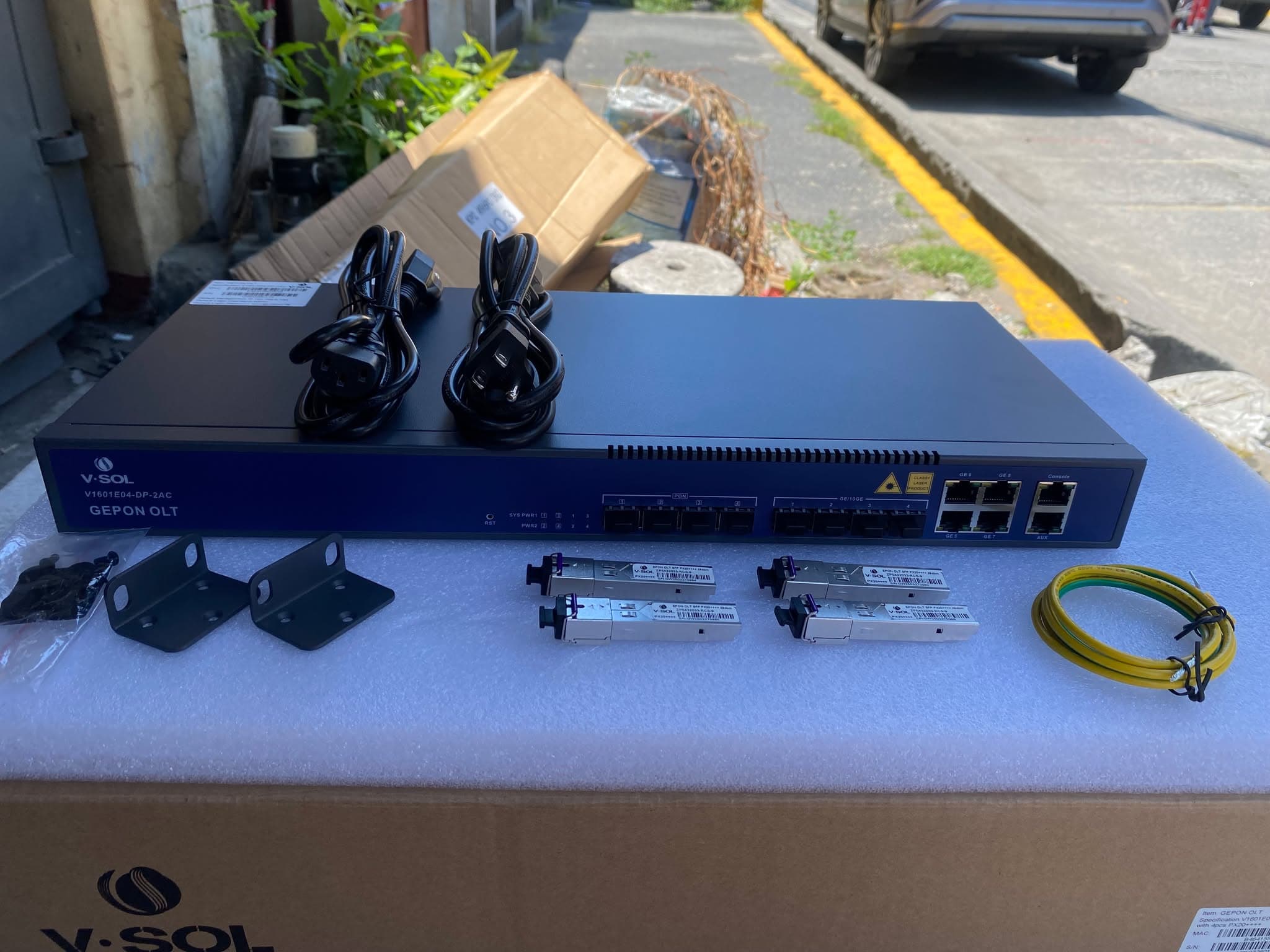

VSOL 4PON EPON with 9dB/7dB Module
The VSOL 4 Port EPON OLT is a compact and efficient Optical Line Terminal designed for EPON (Ethernet Passive Optical Network) deployments. It supports up to 4 EPON ports, providing high-speed connectivity for up to 256 ONUs (Optical Network Units).
Final pricing depends on quantity and lead time. Talk to sales for a quote.
Inquire about VSOL 4pon EPON w/ 9db moduleGet a quote for VSOL 4pon EPON w/ 9db module by email
Leave your details and sales will email you a quote for your quantity and timeline. Optional — the price above is yours either way.
Overview
4 Port EPON OLT with EPON 9dB Module OLT Technical Specifications: Model: V1600D4-DP/BT Spec: 4EPON,4GE(RJ45)+410GE(SFP+) Dual power modules available in DC/AC Weight: 3.2kg QTY: 4 Physical Interface: SFP Slots, Max splitting ratio ≤ 1:64 EPON port speed Upstream: 1.25G, Downstream 1.25G Wavelength: TX 1490nm, RX 1310nm Connector: SC / UPC Fiber Type: 9/125μm SMF Key Features Easy Configuration, Plug & Play Powerful Security Protection Support Full Services Management Support BBU* FTTH Application
Dimensions
- Weight
- —
- Dimensions (L × W × H)
- —
- Packaging
- —
- Carton qty
- —
- Carton weight
- —
- Carton dimensions
- —
